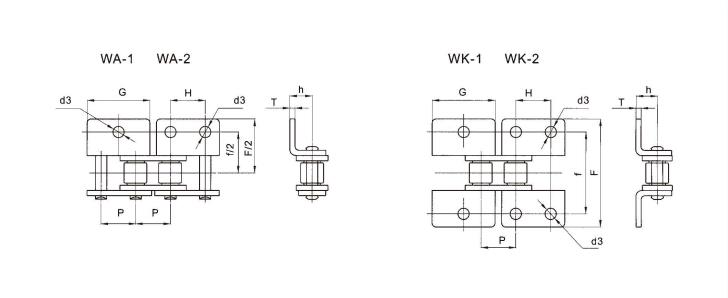

短節距滾子鏈附件

SO鏈號.ANSI鏈號.節距鏈板附件尺寸PTGHfFd3minhmmmmmmmmmmmmmmmm06C359.5251.3017.329.52519.0528.602.606.4008A4012.7001.5022.9012.70025.4035.603.307.9010A5015.8752.0028.8515.87531.8046.805.0810.3012A6019.0502.3534.2019.05038.1056.405.0811.9016A8025.4003.2045.9025.40050.8073.206.6315.9020A10031.7504.0057

ISO 鏈號.	ANSI 鏈號.	節距	鏈板	附件尺寸
		P	T	G	H	f	F	d3min	h
		mm	mm	mm	mm	mm	mm	mm	mm
06C	35	9.525	1.30	17.32	9.525	19.05	28.60	2.60	6.40
08A	40	12.700	1.50	22.90	12.700	25.40	35.60	3.30	7.90
10A	50	15.875	2.00	28.85	15.875	31.80	46.80	5.08	10.30
12A	60	19.050	2.35	34.20	19.050	38.10	56.40	5.08	11.90
16A	80	25.400	3.20	45.90	25.400	50.80	73.20	6.63	15.90
20A	100	31.750	4.00	57.65	31.750	63.50	89.80	8.21	19.80
24A	120	38.100	4.70	69.30	38.100	76.20	108.80	9.81	23.00
28A	140	44.450	5.80	80.45	44.450	88.90	123.00	11.38	28.60
32A	160	50.800	6.40	92.00	50.800	101.60	142.80	13.11	31.80
08B		12.700	1.50	24.00	12.700	25.40	36.40	4.30	8.90
10B		15.875	1.70	29.58	15.875	31.80	44.60	5.30	10.30
12B		19.050	1.80	34.05	19.050	38.10	52.40	6.40	13.50
16B		25.400	3.20	46.40	25.400	50.80	72.60	6.40	15.90
20B		31.750	3.50	58.10	31.750	63.50	100.50	8.40	19.80
