雙節距加長銷輸送鏈

Solid rollers enhance rotation on the bushing while reducing impact loads on the sprocket tooth during operation. All components are heat treated to achieve maximum strength. Pre-loaded during the manufacturing process to minimize initial elongation. Hot dipped lubrication ensures 100% lubrication of all chain components to extend wear life and reduce maintenance costs

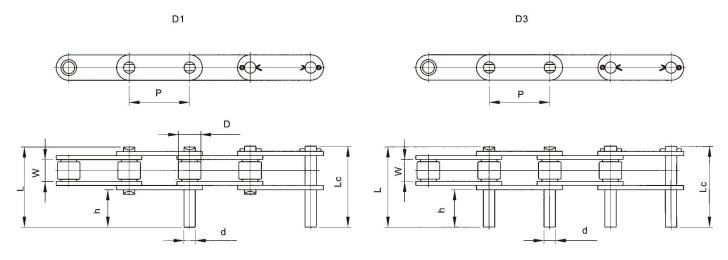

ISO 鏈號.	ANSI 鏈號.	節距	內節寬度	滾子直徑	銷軸
		P	W	D	d	L	Lc	h
		mm	mm	mm	mm	mm	mm	mm
40C	25	6.35	3.1	3.3	2.31	10.20	11.10	2.80
40C	25	6.35	3.1	3.3	2.31	20.90	21.80	13.50
06C	35	9.525	4.68	5.08	3.60	20.80	21.60	9.50
08A	40	12.70	7.85	7.92	3.98	25.15	26.20	9.50
08A	40	12.70	7.85	7.92	3.98	31.10	32.25	15.40
10A	50	15.875	9.4	10.16	5.09	31.30	33.10	11.90
10A	50	15.875	9.4	10.16	5.09	38.35	39.60	19.05
12A	60	19.05	12.58	11.91	5.96	38.60	40.60	14.30
16A	60	25.40	15.75	15.87	7.94	50.30	53.30	19.10
20A	100	31.75	18.90	19.05	9.54	61.80	66.10	23.80
24A	120	38.10	25.23	22.22	11.11	76.40	80.40	28.60
24A	120	38.10	25.23	22.22	11.11	86.88	89.75	39.10
28A	140	44.45	25.23	25.4	12.71	84.80	89.40	33.30
32A	160	50.80	31.55	28.57	14.29	99.60	104.40	38.10
40A	200	63.50	18.90	39.67	9.54	61.80	66.10	23.80
