空心銷軸鏈
|

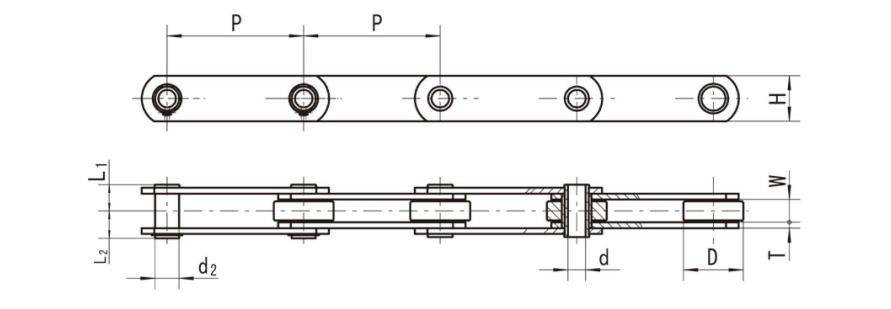

CHAIN 鏈號. |
節距 | 內節寬度 | 滾子外徑 | 銷軸 | 鏈板 |
最小 抗拉強度 |
額定 抗拉強度 |
重量 | ||||
| d | d2 | L1 | L2 | H | t/T | |||||||
| mm | mm | mm | mm | mm | mm | mm | mm | mm | KN/min | KN/min | kg/m | |
| HC120030 | 76.20 | 19.00 | 47.60 | 13.20 | 19.05 | 23.10 | 23.90 | 38.10 | 3.8/5.1 | 5.40 | 3.80 | 7.46 |
| HC240040 | 101.60 | 25.40 | 66.70 | 19.56 | 26.92 | 31.50 | 32.00 | 50.80 | 6.5/7.8 | 5.40 | 8.70 | 14.28 |
| HC240060 | 152.40 | 25.40 | 66.70 | 19.56 | 26.92 | 31.50 | 32.00 | 50.80 | 6.5/7.8 | 124.50 | 8.70 | 12.05 |
| DC180060HP | 152.40 | 19.05 | 47.60 | 13.20 | 19.05 | 23.10 | 23.90 | 39.00 | 5.08 | 66.60 | 5.50 | 5.35 |
| JH4P18HP | 101.60 | 19.10 | 47.60 | 13.20 | 19.05 | 23.10 | 23.90 | 39.00 | 5.08 | 66.60 | 5.50 | 8.03 |
| HB80 | 80.00 | 20.00 | 50.00 | 18.50 | 24.00 | 22.00 | 23.50 | 40.00 | 5.0/4.0 | 79.00 | 6.30 | 6.81 |
| HP100 | 100.00 | 22.00 | 45.00 | 12.00 | 16.00 | 22.50 | 23.50 | 35.00 | 5.00 | 75.00 | 6.00 | 6.20 |
| HP100F1 | 100.00 | 22.00 | 45.00 | 12.00 | 18.00 | 23.00 | 24.20 | 35.00 | 5.00 | 75.00 | 6.00 | 6.15 |
