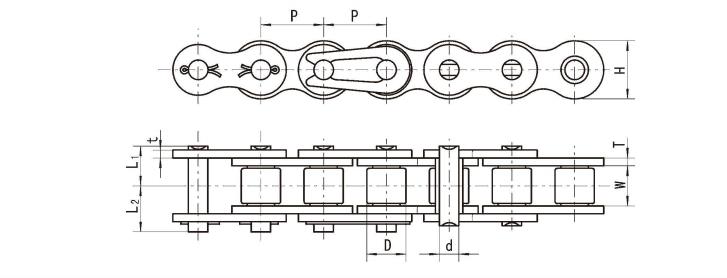

B 系列短節距滾子鏈
|
ISO NO. |
節距 | 內節寬度 | 滾子外徑 | 銷軸 | 鏈板 |
最小 抗拉強度 |
平均 抗拉強度 |
重量 | |||
| d | L1 | L2 | H | t/T | Q min | Q 0 | |||||
| mm | mm | mm | mm | mm | mm | mm | mm | kN | kN | Kg/meter | |
| 05B-1 | 8.000 | 3.00 | 5.00 | 2.31 | 3.90 | 4.80 | 7.10 | 0.80 | 4.4 | 5.9 | 0.11 |
| 06B-1 | 9.525 | 5.72 | 6.35 | 3.28 | 6.27 | 7.23 | 8.20 | 1.30 | 8.9 | 10.4 | 0.41 |
| 08B-1 | 12.700 | 7.75 | 8.51 | 4.45 | 8.50 | 9.90 | 11.80 | 1.60 | 17.8 | 19.4 | 0.69 |
| 10B-1 | 15.875 | 9.65 | 10.16 | 5.08 | 9.60 | 10.90 | 14.60 | 1.70 | 22.2 | 27.5 | 0.93 |
| 12B-1 | 19.050 | 11.68 | 12.07 | 5.72 | 11.00 | 12.40 | 16.00 | 1.85 | 28.9 | 32.2 | 1.15 |
| 16B-1 | 25.400 | 17.02 | 15.88 | 8.28 | 17.65 | 19.05 | 20.90 | 3.2/4 | 60.0 | 72.8 | 2.71 |
| 20B-1 | 31.750 | 25.40 | 19.05 | 10.19 | 20.20 | 23.80 | 26.00 | 3.5/4.5 | 95.0 | 106.7 | 3.70 |
| 24B-1 | 38.100 | 25.40 | 25.40 | 14.63 | 26.65 | 31.05 | 33.00 | 48/.6 | 160.0 | 178.0 | 7.10 |
| 28B-1 | 44.450 | 30.99 | 27.94 | 15.90 | 32.55 | 26.45 | 36.70 | 6/7.5 | 200.0 | 222.0 | 8.50 |
| 32B-1 | 50.800 | 30.99 | 29.21 | 17.81 | 32.80 | 37.20 | 41.90 | 6/.7 | 250.0 | 277.5 | 10.25 |
| 48B-1 | 76.200 | 45.72 | 48.26 | 29.24 | 19.55 | 58.65 | 63.50 | 9.7/11.8 | 400.0 | 621.6 | 25.00 |
| 72B-1 | 114.300 | 68.58 | 72.39 | 44.48 | 74.15 | 82.25 | 103.63 | 16/.17 | 898.5 | 1550.0 |
63.55 |
